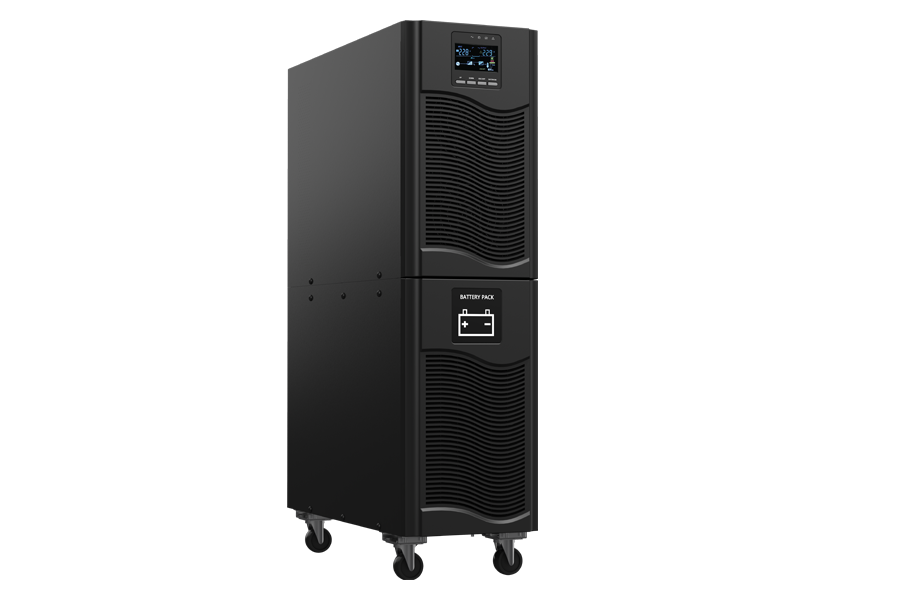

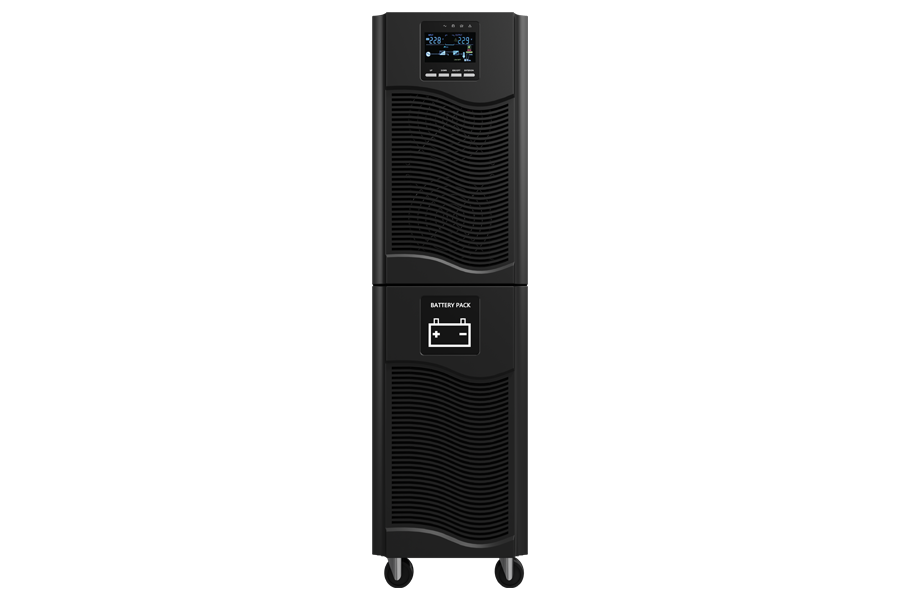

Titanium Peta Power 6 kva online
- ·N+X parallel
redundancy, support maximum 4 units in parallel
- ·Online double
conversion with full digital control
- ·Optimization battery
group, the quantity of battery: 16/18/20pcs (Settable)
- ·Wide input voltage
range: 110~286Vac
- ·Wide input frequency
range
- ·Selectable output
voltage: 208/220/230/240Vac
- ·Generator compatible
- ·ECO mode operation
for energy saving
- ·Self-testing when UPS
startup
- ·Multiple
communication interface: RS232/USB/EPO (Relay card /SNMP card optional)
- ·Maximum charging
current up to 10A
- ·Cold start
·Design with maintenance switch (Optional) - ·Intelligent fan speed
regulation
·Multiple protection function: short-circuit, overload, overheat, battery - overcharge and over discharge, output low
voltage and fan fault alarm
| MODEL | Titanium PETA POWER 6 KVA ONLINE |
| Cabacity | 6 KVA / 6000 W |
| INPUT | |
| Nominal voltage | 208/220/230/240Vac |
| Input voltage range | 110~286Vac |
| Frequency range | 40~70Hz (50/60Hz Auto-Sensing) |
| Power factor | ≥0.99 |
| Bypass voltage range | Max.voltage:220V:+25%
(Optional+10%,15%,20%) 230V:+20% 240V:+15% Min.voltage:-45% |
| OUTPUT | |
| Output voltage | 208/220/230/240Vac |
| Power factor | 1 |
| Voltage regulation | ±1% |
| Output frequency |
Line
Mode :±10% of the rated frequency Bat. Mode :(50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THDv) | ≤2%
Linear load ≤5% Non linear load |
| Transfer time | 0ms |
| Output waveform | Pure Sinewave |
| Overload | Line
Mode :Load≤110% last 60min; ≤125% last 10min; ≤150% last 1min;>150% turn
to bypass mode immediately Bypass Mode : 40A (Breaker) |
| EFFICENCY | |
| EFFICENCY | 94% |
| BATTERIES | |
| Battery number | (±96/±108/±120Vdc (Adjustable) |
| Inbuilt battery | 12V/7Ah x16 |
| Charging current (Max) | 1A |
| Recharge time | 6~8 hours (to 90% of full capacity) |
| INDICATORS | |
| LCD display | Input voltage,Input frequency,Output voltage,Output frequency,Load percentage, Battery voltage,Inner temperature& Remaining battery backup time |
| ALARM | |
| Battery mode | Beeping every 4 seconds |
| Low Battery | Beeping every second |
| Overload | Beeping twice every second |
| Fault | Continously beeping |
| ENVIRONMENT | |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -25℃~55℃ |
| Humidity range | 20~95%RH @ 0~40℃ (Non condensing) |
| Altitude | <1500m,derating required when>1500m |
| Noise level | <58dB at 1 Meter |
| STANDARDS | |
| Safety | IEC/EN62040-1,IEC/EN62477-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| PHYSICAL | |
| Dimension W x D×H (mm) | 191 x 460 x 720 (With wheel) |
| Net weight (kg) | 70 |
| Specifcaions are Subject to change without prior notice | |
