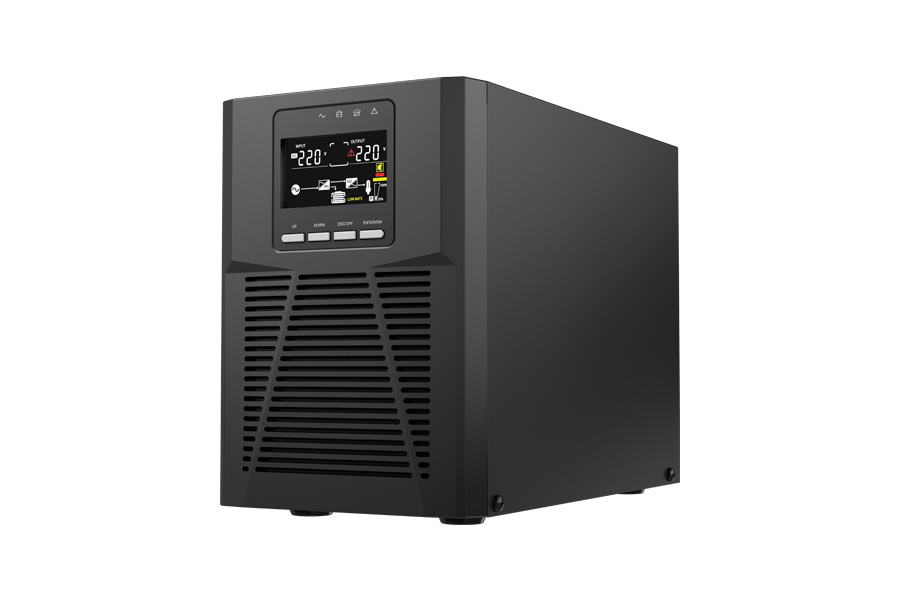

Titanium Peta Power 2 kva online
- High power density
- Online double conversion with full digital control
- Wide input voltage range: 110~300Vac
- Input power factor 0.99 with PFC
- Selectable output voltage: 208/220/230/240Vac
- Smart charger design for optimized
- battery performance
- Emergency power off function (EPO)
- ECO mode operation for energy saving
- Generator compatible
- Cold start
- Intelligent fan speed regulation
- Versatile LCD human-computer interface
- Multiple communication interface: RS232 (USB/EPO/Relay card /SNMP card optional)
- Multiple protection function: short-circuit, overload, overheat, battery
overcharge and over discharge, output - low voltage and fan fault alarm
| MODEL | Titanium PETA POWER 2 KVA ONLINE |
| Cabacity | 2 KVA / 1800 W |
| INPUT | |
| Nominal voltage | 208/220/230/240Vac |
| Input voltage range | 110~300Vac (176~280Vac @ 100% load) |
| Frequency range | 40~70Hz (50/60Hz Auto-Sensing) |
| Power factor | ≥0.99 |
| OUTPUT | |
| Output voltage | 208/220/230/240Vac |
| Power factor | 0.9 |
| Voltage regulation | ±1% |
| Output frequency |
Line
Mode :46~54Hz or 56~64Hz Bat. Mode :(50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THDv) | ≤3%
Linear load ≤5% Non linear load |
| Transfer time | 0ms |
| Output waveform | Pure Sinewave |
| EFFICENCY | |
| AC mode | 90% |
| Battery mode | 87% |
| BATTERIES | |
| Battery number | 4 |
| Inbuilt battery | 12V/9Ah X4 |
| Charging voltage | 54.8Vdc±1% |
| Charging current (Max) | 1A |
| Recharge time | 4 hours (to 90% of full capacity) |
| INDICATORS | |
| LCD display | Input voltage,Input frequency,Output voltage,Output frequency,Load percentage, Battery voltage,Inner temperature& Remaining battery backup time |
| ALARM | |
| Battery mode | Beeping every 4 seconds |
| Low Battery | Beeping every second |
| Overload | Beeping twice every second |
| Fault | Continously beeping |
| ENVIRONMENT | |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -25℃~55℃ |
| Humidity range | 20~95%RH @ 0~40℃ (Non condensing) |
| Altitude | <1500m,derating required when>1500m |
| Noise level | <50dB at 1 Meter |
| STANDARDS | |
| Safety | IEC/EN62040-1,IEC/EN62477-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| PHYSICAL | |
| Dimension W x D×H (mm) | 191 x 460 x 337 |
| Net weight (kg) | 19.5 |
| Specifcaions are Subject to change without prior notice | |
