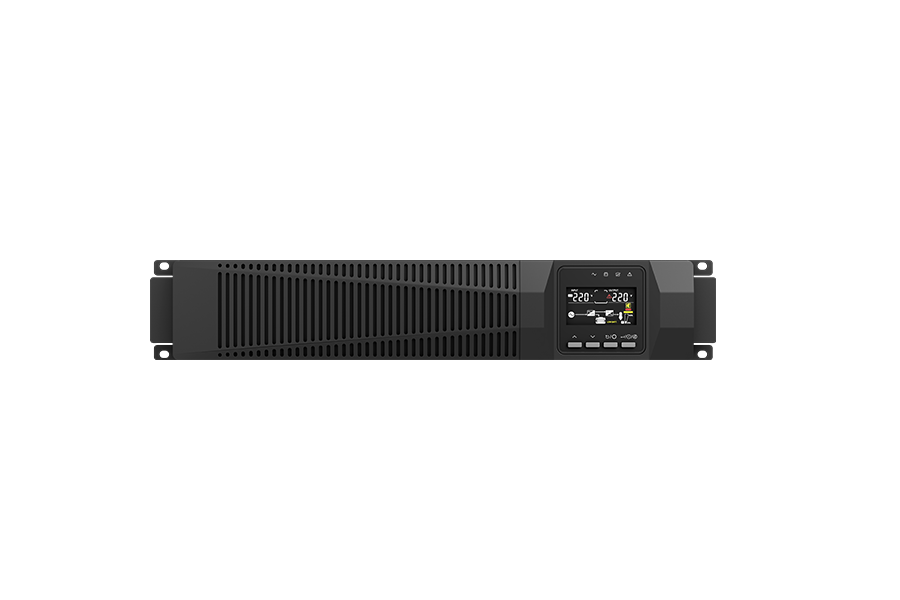

Titanium Peta Power 6 kva online RT
- High power density
- LCD supports Rack/Tower convertible design
- N+X parallel redundancy, support maximum 4 units in parallel
- Online double conversion with full digital control
- Optimization battery group, the quantity of battery:
16/18/20pcs (Settable)
- Wide input voltage range: 110～286Vac
- Wide input frequency range
- Generator compatible
- ECO mode operation for energy saving
- Self-testing when UPS startup
- Multiple communication interface: RS232/USB/PO (Relay card /SNMP card optional)
- Parallel kit default
- Maximum charging current up to 10A
- Cold start
- Intelligent fan speed regulation
- Multiple protection function: short-circuit, overload,
overheat, battery
- overcharge and over discharge, output low voltage and fan
fault alarm
| MODEL | Titanium PETA POWER 6 KVA RT ONLINE |
| Cabacity | 6 KVA / 6000 W |
| INPUT | |
| Nominal voltage | 208/220/230/240Vac |
| Input voltage range | 110～286Vac |
| Frequency range | 40~70Hz (50/60Hz Auto-Sensing) |
| Bypass voltage range | Max.voltage: 220V: ＋25%
(Optional ＋10%, ＋15%, ＋20%) 230V: ＋20% (Optional ＋10%, ＋15%) 240V: ＋15% (Optional ＋10%) Min.voltage: －45% (Optional －20%,－30%) |
| Power factor | ≥0.99 |
| OUTPUT | |
| Output voltage | 208/220/230/240Vac |
| Power factor | 1 |
| Voltage regulation | ±1% |
| Output frequency |
Line
Mode :4±1%/±2%/±4%/±5%/±10% of the rated frequency (Optional) Bat. Mode :(50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THDv) | ≤2%
Linear load ≤5% Non linear load |
| Transfer time | AC mode to Bat.mode :0ms / Inverter to Bypass :0ms |
| Output waveform | Pure Sinewave |
| EFFICENCY | UP TO 94 % |
| OVER LOAD | line mode : Load≤110% last 60min; ≤125% last 10min; ≤150% last 1min; ＞150% turn to bypass mode immediately Bypass Mode : 40A (Breaker ) |
| BATTERIES | |
| Battery voltage | ±96/±108/±120Vdc (Settable) |
| Typical recharging time | 6～8 hours (To 90% of full capacity) |
| Charging current (Max) | Max.current 10A (Charging current can be set according to battery capacity) |
| INDICATORS | |
| LCD display | Input voltage,Input frequency,Output voltage,Output frequency,Load percentage, Battery voltage,Inner temperature& Remaining battery backup time |
| ALARM | |
| Battery mode | Beeping every 4 seconds |
| Low Battery | Beeping every second |
| Overload | Beeping twice every second |
| Fault | Continously beeping |
| ENVIRONMENT | |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -25℃~55℃ |
| Humidity range | 20~95%RH @ 0~40℃ (Non condensing) |
| Altitude | <1500m,derating required when>1500m |
| Noise level | <55dB at 1 Meter |
| STANDARDS | |
| Safety | IEC/EN62040-1,IEC/EN62477-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| PHYSICAL | |
| Dimension W x D×H (mm) | 440×625×86.5.5 |
| Net weight (kg) | 16 |
| Specifcaions are Subject to change without prior notice | |
