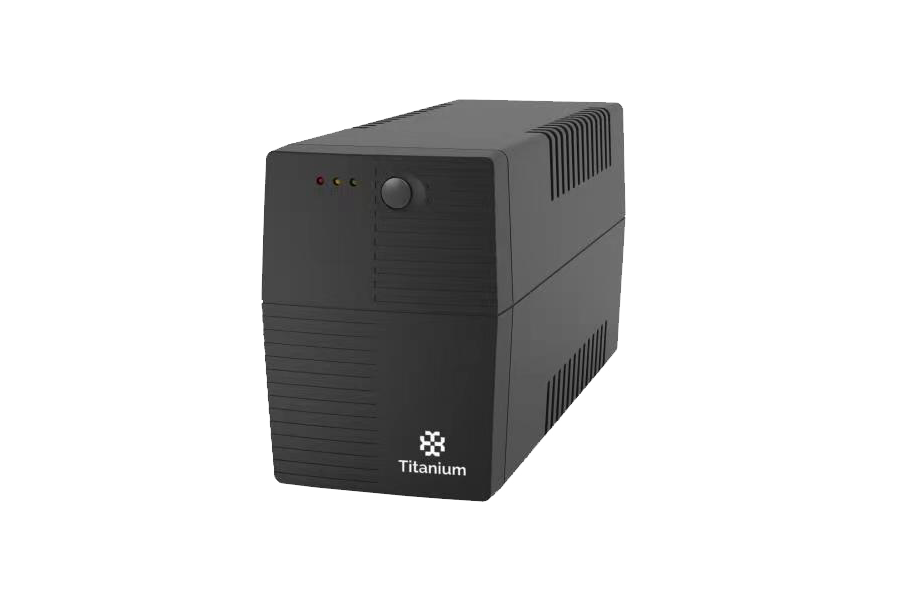

Titanium Tera Power 850 VA
- Line Interactive UPS with simulated sinewave
output.
reliability (internal self-diagnostic technology).
(wide input range with tow boost and one buck control).
Model | Tera Power 850 va |
Cabacity | 850 va / 510 W |
INPUT |
|
Voltage | 220/230/240Vac |
Voltage Range | 140-300Vac |
Frequency | 50 / 60 Hz (auto-sensing) |
OUTPUT |
|
AC Voltage Regulation (Batt.Mode) | ± 10% |
Frequency Range | 50 / 60 Hz ± 1% (auto-sensing) |
Waveform | Simulated Sinewave |
Transfer time | Typical 2 ~ 7 ms, 10 ms max. |
BATTERIES |
|
DC voltage | 12VDC |
Inbuilt battery | 12V/8Ah X1 |
Recharge time | 4~6 hours recover to 90 % capacity |
INDICATORS |
|
LED Display | AC Mode , Battery Mode , Overload , Fault |
ALARM |
|
Battery mode | Sounding every 10 seconds |
Low Battery | Sounding every second |
Overload | Sounding every 0.5 second |
Battery Replacement Alarm | Sounding every 2 seconds |
Fault | Continuously sounding |
OTHERS |
|
Protections | Short circuit - battery overcharge – overdischarge – overload - surge |
Humidity | 0 ~ 90 % RH @ 0 ~ 40℃ (non-condensing) |
Noise level | ≤ 45 dB (1 m) |
Dimensions (W×D×H) (mm) | 298x101x142 |
Net weight (kg) | 4.9 |
Specifcaions are Subject to change without prior notice |
|
