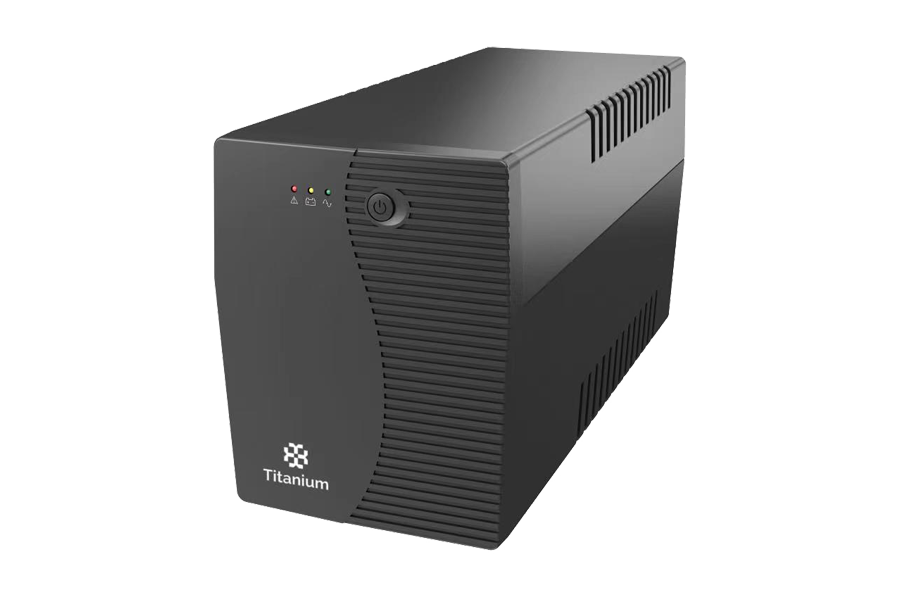

Titanium Tera Power 1500VA
- Line Interactive UPS with simulated sinewave
output.
reliability (internal self-diagnostic technology).
(wide input range with tow boost and one buck control).
| Model | Tera power 1500 va |
| Cabacity | 1500 va / 900 W |
| INPUT | |
| Voltage | 220/230/240Vac |
| Voltage Range | 140-300Vac |
| Frequency | 50 / 60 Hz (auto-sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt.Mode) | ± 10% |
| Frequency Range | 50 / 60 Hz ± 1% (auto-sensing) |
| Waveform | Simulated Sinewave |
| Transfer time | Typical 2 ~ 7 ms, 10 ms max. |
| BATTERIES | |
| DC voltage | 24VDC |
| Inbuilt battery | 12V/9Ah X2 |
| Recharge time | 6~8 hours recover to 90 % capacity |
| INDICATORS | |
| LED Display | AC Mode , Battery Mode , Overload , Fault |
| ALARM | |
| Battery mode | Sounding every 10 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding every 0.5 second |
| Battery Replacement Alarm | Sounding every 2 seconds |
| Fault | Continuously sounding |
| OTHERS | |
| Protections | Short circuit - battery overcharge – overdischarge – overload - surge |
| Humidity | 0 ~ 90 % RH @ 0 ~ 40℃ (non-condensing) |
| Noise level | ≤ 55 dB (1 m) |
| Dimensions (W×D×H) (mm) | 380x158x198 |
| Net weight (kg) | 10.1 |
| Specifcaions are Subject to change without prior notice |
